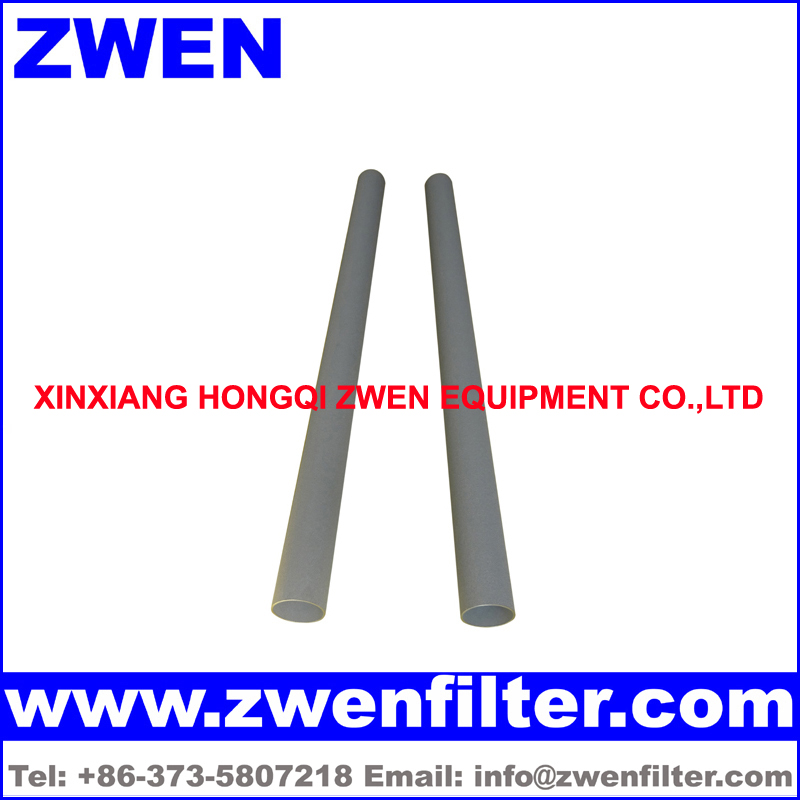

Sintered Porous Filter Pipe Technical Data
Raw Material: SS 316L,Titanium
Filter Rating Range: 0.22 μm ~ 100 μm
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,
60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Sintered Porous Filter Pipe Feature
1. Sintered porous filter pipe is made from stainless steel powder particle or titanium powder particle
2. Sintered porous filter pipe is sintered in a high temperature vacuum furnace
3. Sintered porous filter pipe is depth filtration
4. Sintered porous filter pipe is backwash
5. High porosity
6. High mechanical strength
7. High filter efficiency
8. High dirt holding capacity
9. High flow rate at low differential pressure
10. High temperature resistance
11. High corrosion resistance
12. Washable and Cleanable
14. Long service life
1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)
4. Catalysts powders recovery
5. Precoat support filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces sintered porous filter cartridge, sintered porous filter element, sintered porous filter disc, sintered porous filter disk, sintered porous filter pipe, sintered porous filter plate, sintered porous filter rod, sintered porous filter sheet, and sintered porous filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
