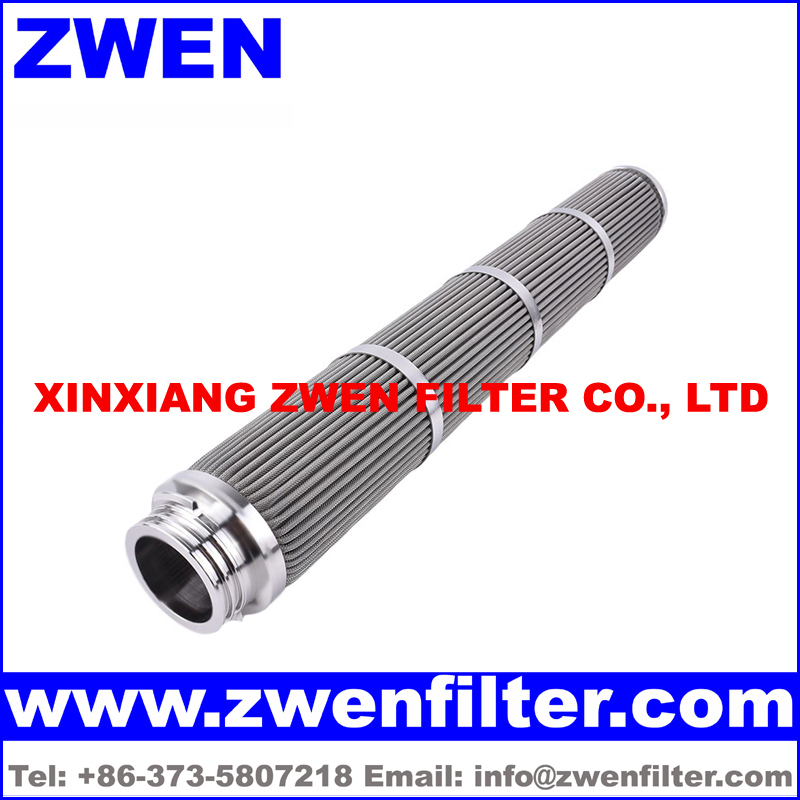

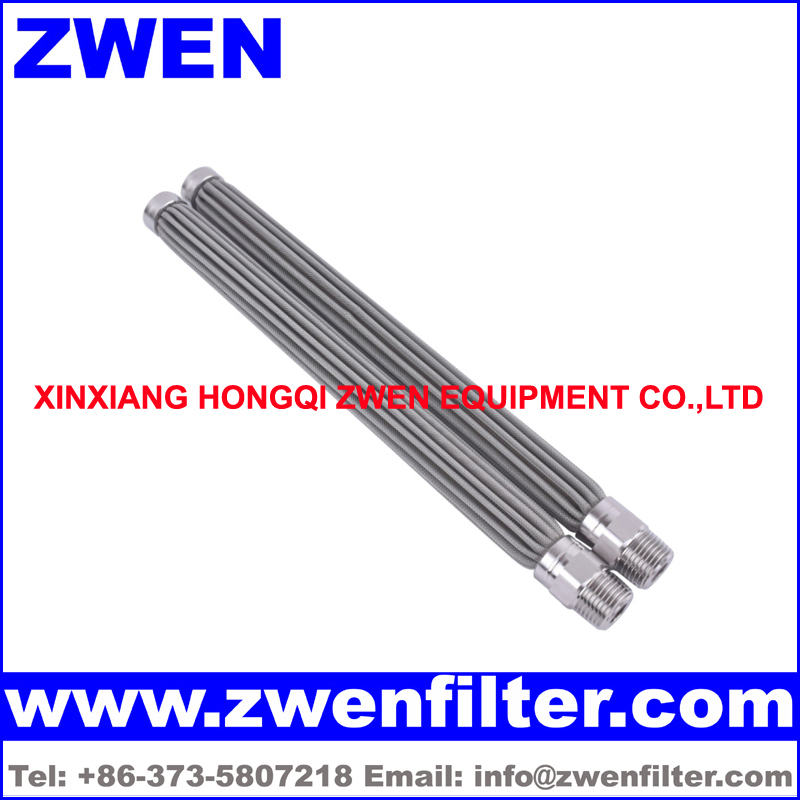

304 Pleated Sintered Metal Fiber Felt Filter Technical Parameter
Raw Material: SS 304
Filter Media: ZWEN Sintered Fiber Felt
Filter Rating Range: 1 Micron ~ 100 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm,
150 mm, 300 mm, 400 mm or others
Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
8. Special customization
304 Pleated Sintered Metal Fiber Felt Filter Feature
1. 304 pleated sintered metal fiber felt filter has large filter area
2. 304 pleated sintered metal fiber felt filter has high dirt holding capacity
3. 304 pleated sintered metal fiber felt filter has high porosity
4. High filter efficiency
5. High mechanical strength
6. High temperature resistance
7. High corrosion resistance
8. Washable and Cleanable
9. Long service life
Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces 304 pleated sintered metal fiber felt filter, 304 pleated sintered metal wire cloth filter, and 304 pleated sintered metal wire mesh filter.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
XINXIANG ZWEN FILTER CO.,LTD
FACTORY ADDRESS: NO.425, XINHUI ROAD, MUYE DISTRICT, XINXIANG CITY, HENAN PROVINCE,
ENGLISH WEBSITE: www.zwenfilter.com
ENGLISH WEBSITE: www.leerfilter.com
CHINESE WEBSITE: www.zwenfilters.com
