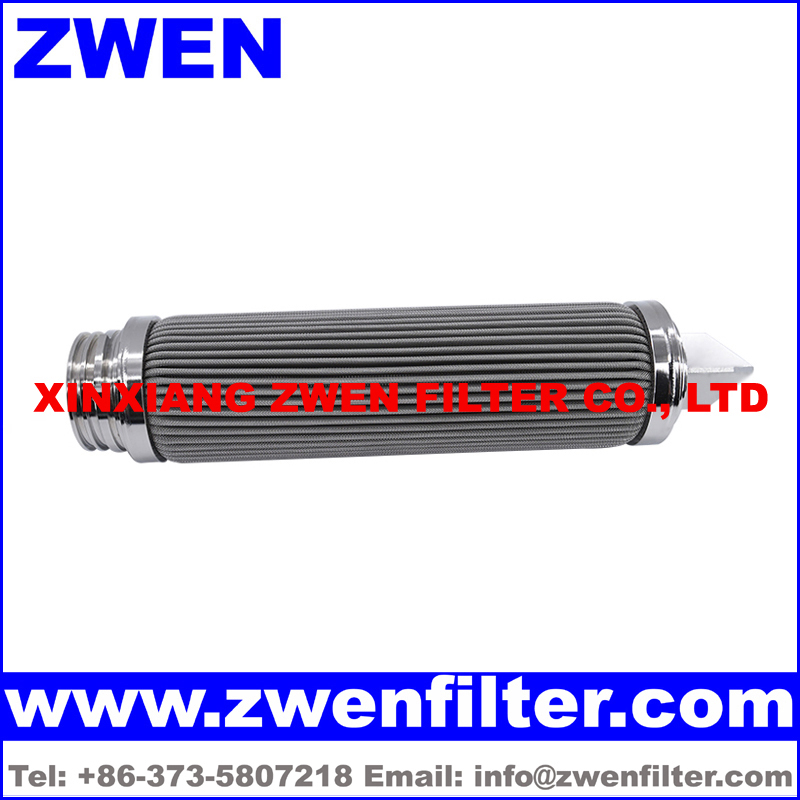

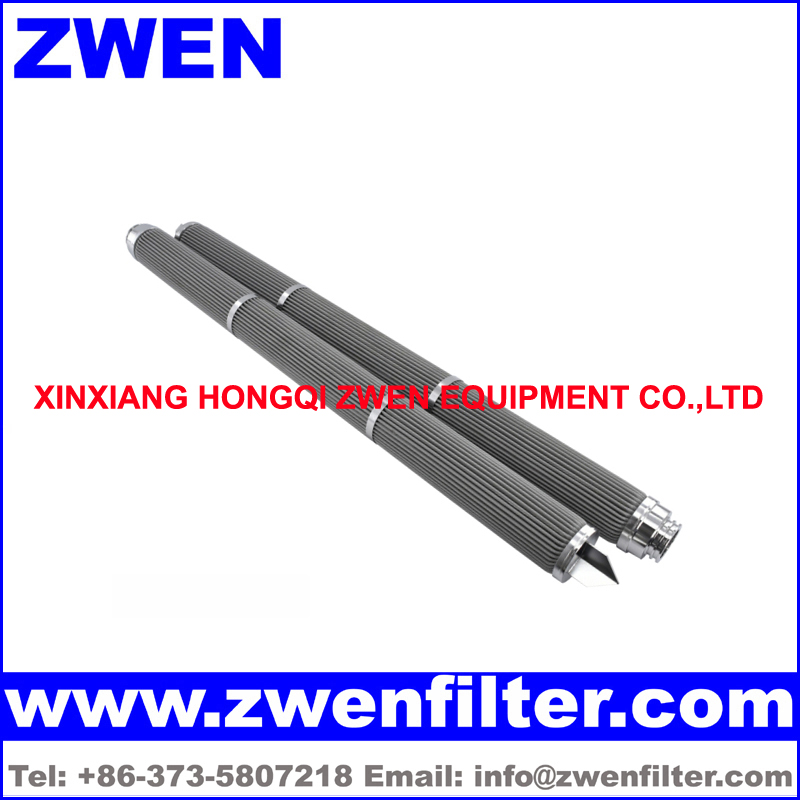

SS 304 Pleated Metal Wire Mesh Filter Element

Source:http://www.zwenfilter.com/news/1729.html    Time:2023-04-21    Hits:15

ZWEN------Backwash_Sintered_Filter_Leader



SS 304 Pleated Metal Wire Mesh Filter Element Technical Parameter

Raw Material: SS 304

Filter Rating Range: 1 Micron ~ 850 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 30 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm,

                             100 mm, 110 mm, 150 mm, 300 mm, 400 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


SS 304 Pleated Metal Wire Mesh Filter Element Feature

1. SS 304 pleated metal wire mesh filter element has large filter area

2. SS 304 pleated metal wire mesh filter element has high flow rate

3. SS 304 pleated metal wire mesh filter element is good for backwash

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Long service life



Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces ss 304 pleated metal sintered fiber felt filter element, ss 304 pleated metal wire cloth filter element, and ss 304 pleated metal wire mesh filter element.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
