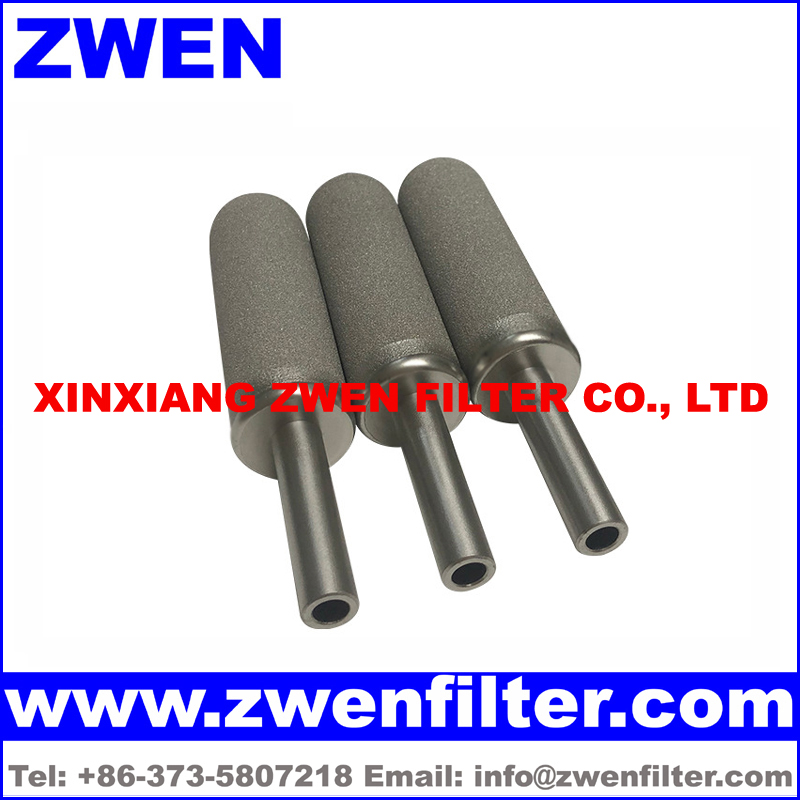

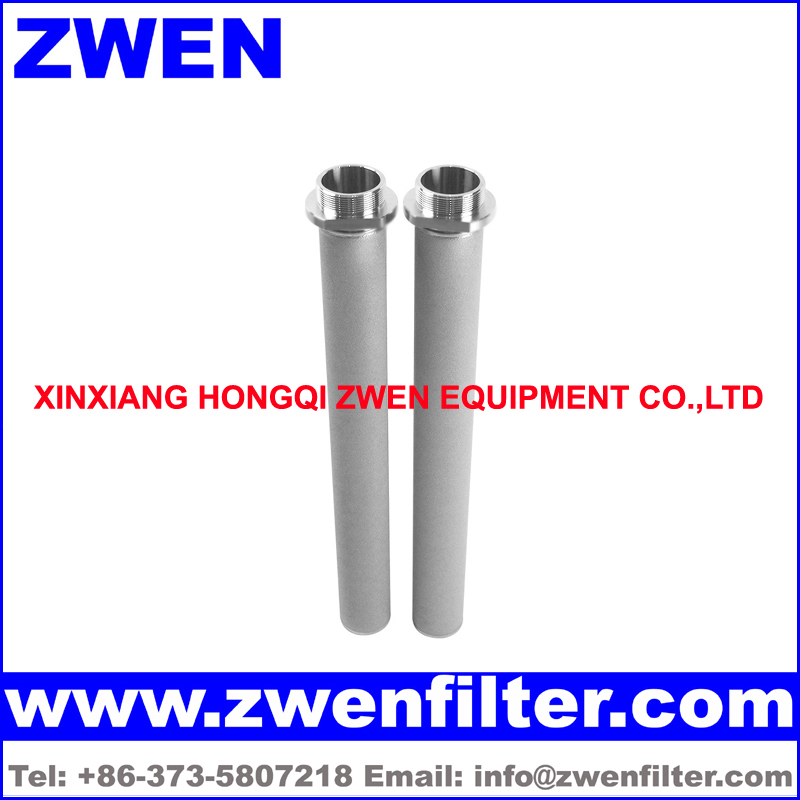

BSP Thread Ti Sintered Powder Filter Cartridge

Source:http://www.zwenfilter.com/news/2110.html    Time:2024-04-10    Hits:159

ZWEN------Backwash_Sintered_Filter_Leader



BSP Thread Ti Sintered Powder Filter Cartridge Technical Data

Raw Material: Ti

Filter Rating Range: 0.22 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  300

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor: BSP Male Thread or BSP Female Thread


BSP Thread Ti Sintered Powder Filter Cartridge Feature

1. BSP thread ti sintered powder filter cartridge is biocompatible

2. BSP thread ti sintered powder filter cartridge has high porosity

3. BSP thread ti sintered powder filter cartridge is good for backwash

4. BSP thread tsintered powder filter cartridge has high mechanical strength

5. High filter efficiency

6. High dirt holding capacity

7. High temperature resistance

8. High corrosion resistance

9. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces ti sintered powder filter cartridge, ti sintered powder filter disc, ti sintered powder filter disk, ti sintered powder filter element, ti sintered powder filter pipe, ti sintered powder filter plate, ti sintered powder filter rod, ti sintered powder filter sheet, and ti sintered powder filter tube.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
