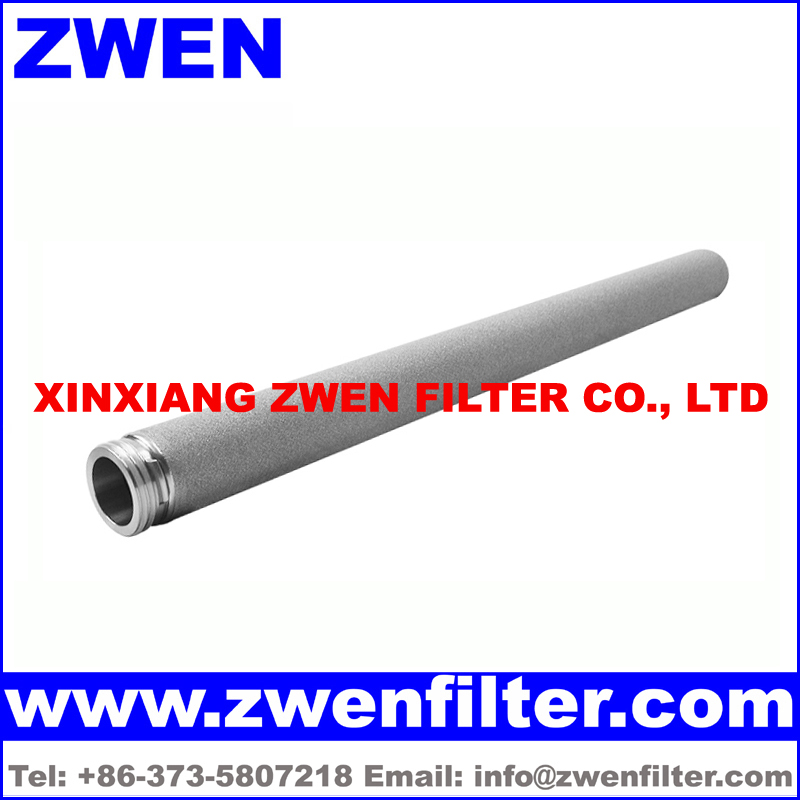

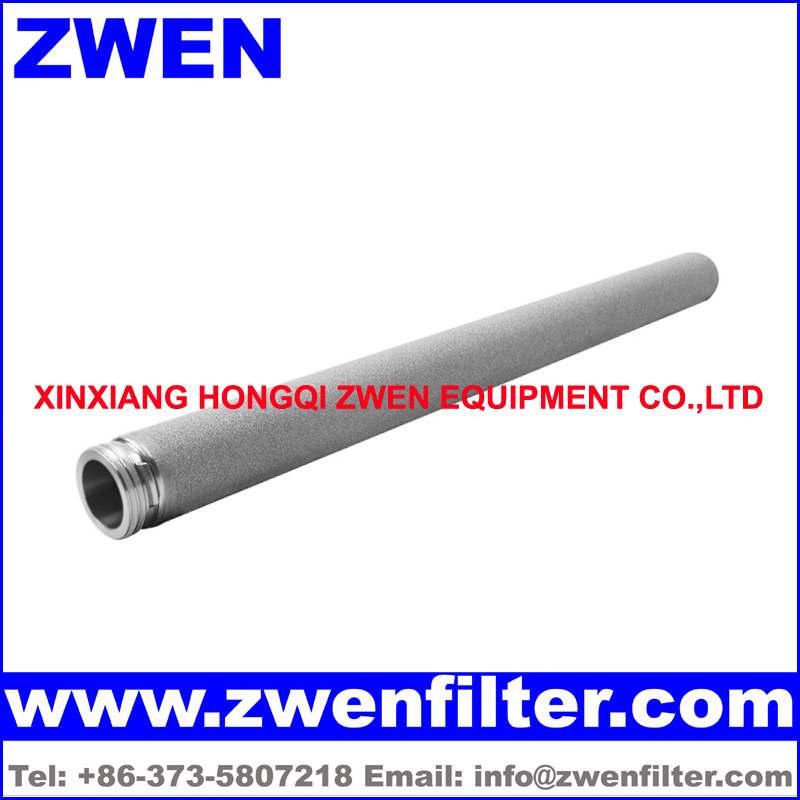

Titanium Filter Element

Source:http://www.zwenfilter.com/news/324.html    Time:2019-12-27    Hits:75

1



Titanium Filter Element Technical Data

Raw Material: Titanium

Filter Rating Range: 0.22 Micron ~ 100 Microns

Operation Temperature: ≤ 300 ℃

Outside Diameter: 12 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, 50 mm,

                              60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm, 130 mm

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Titanium Filter Element Feature

1. Titanium filter element is made from titanium powder particle

2. Titanium filter element is good for backwash

3. Titanium filter element has high porosity

4. High mechanical strength

5. High filter efficiency

6. High dirt holding capacity

7. High temperature resistance

8. High corrosion resistance

9. Washable and Cleanable

10. Reusable

11. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
