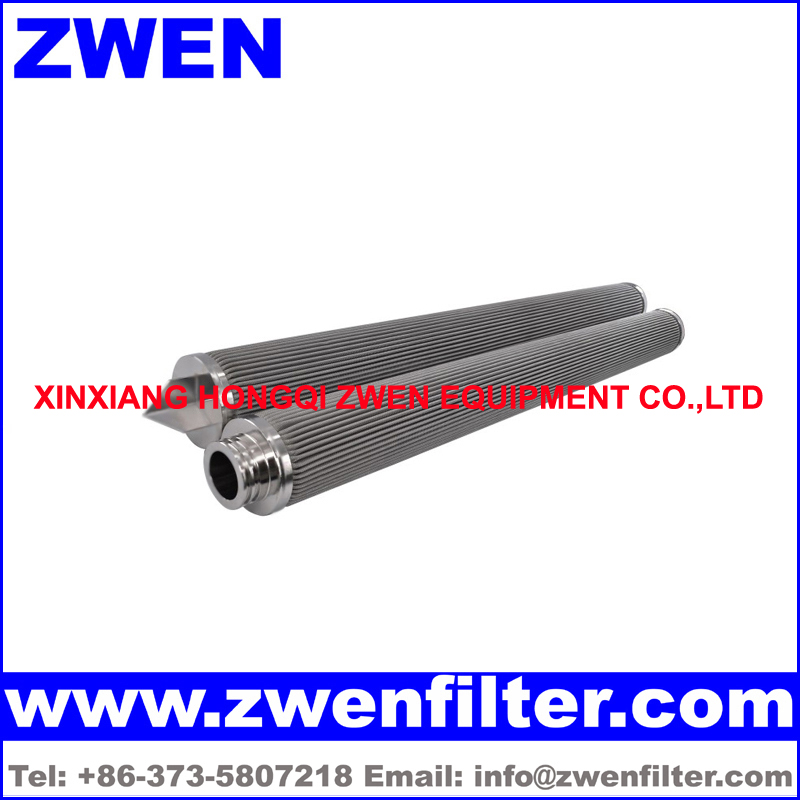

Pleated Candle Filter Element Technical Parameter
Raw Material: SS 316L, SS 304
Filter Media: ZWEN Sintered Fiber Felt
Filter Rating Range: 1 μm ~ 100 μm
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm, 150 mm, 300 mm, 400 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
8. Special customization
Pleated Candle Filter Element Feature
1. Pleated candle filter element has large filter area
2. Pleated candle filter element is depth filtration
3. Pleated candle filter element has high dirt holding capacity
4. Pleated candle filter element has a very high filter efficiency
5. High porosity
6. High mechanical strength
7. High temperature resistance
8. High corrosion resistance
9. High flow rate with low pressure drop
10. Washable and Cleanable
12. Long service life
Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces pleated candle filter element, pleated mesh filter element, pleated metal filter element, pleated sintered fiber mesh filter element, pleated sintered fiber felt filter element, pleated ss filter element, pleated stainless steel filter element, pleated wire cloth filter element, and pleated wire mesh filter element.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
