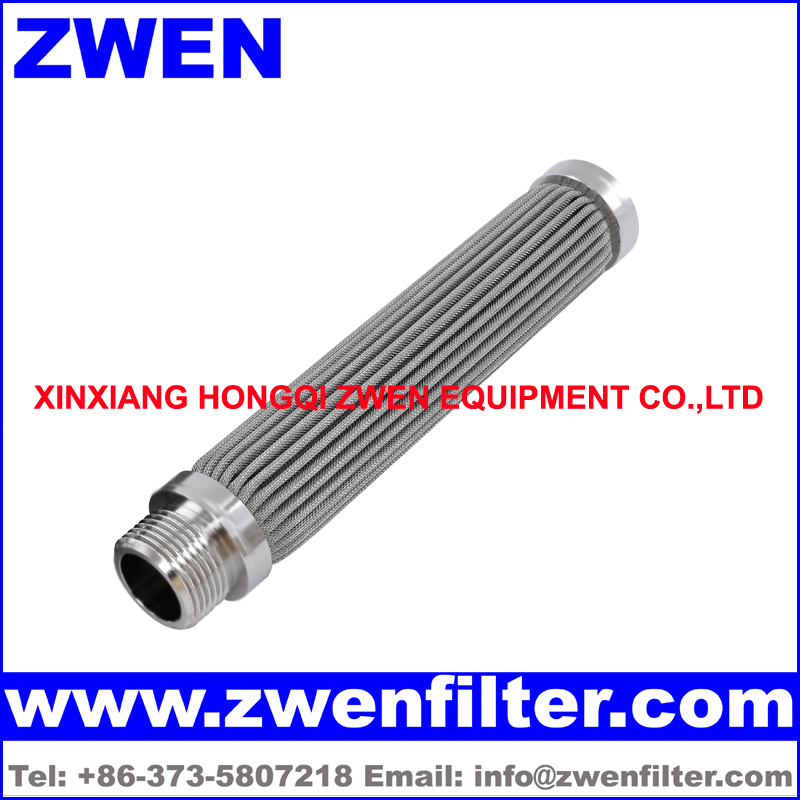

Polymer Filtration Pleated Metal Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 1 μm ~ 850 μm

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 30 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm,

                             100 mm, 110 mm, 150 mm, 300 mm, 400 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization

Polymer Filtration Pleated Metal Filter Element Feature

1. Polymer filtration pleated metal filter element has large filter area

2. Polymer filtration pleated metal filter element has high flow rate

3. Polymer filtration pleated metal filter element is good for backwash

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Long service life

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces polymer filtration pleated metal filter element, polymer filtration pleated sintered fiber felt filter element, polymer filtration pleated wire mesh filter element, polymer filtration ss pleated filter element, and polymer filtration stainless steel pleated filter element.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
