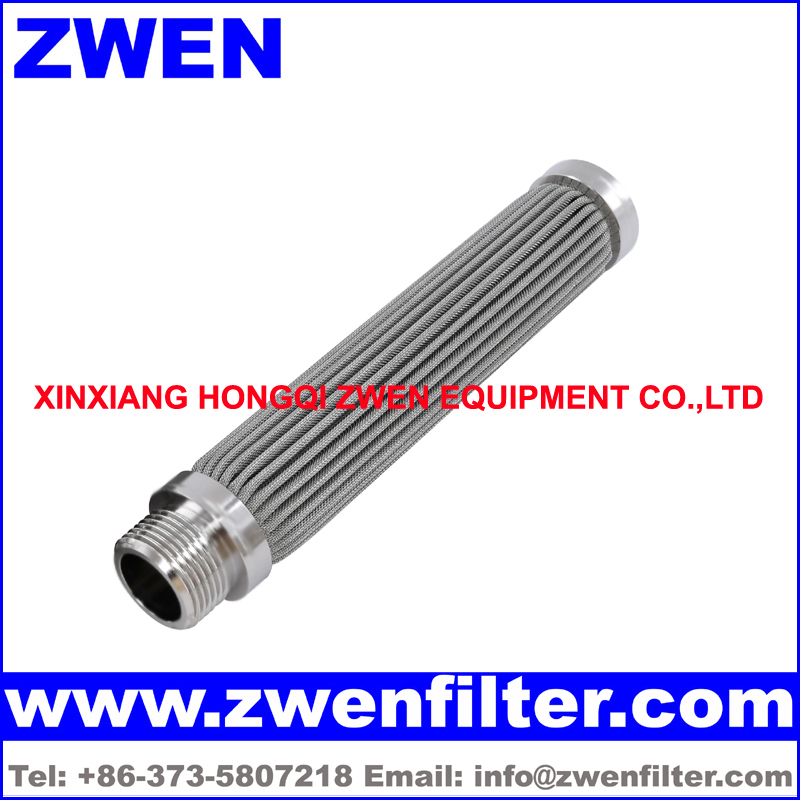

Polymer Filtration Stainless Steel Pleated Filter Cartridge Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating Range: 1 μm ~ 300 μm
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm, 150 mm, 300 mm, 400 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
2. Code 2 (226+Flat End)
3. Code 3 (222+Flat End)
4. Code 7 (226+Fin End)
5. Code 8 (222+Fin End)
6. Thread (NPT,BSP,G,M,R)
8. Special customization
Polymer Filtration Stainless Steel Pleated Filter Cartridge Feature
1. Polymer filtration stainless steel pleated filter cartridge has large filter area
2. Polymer filtration stainless steel pleated filter cartridge is depth filtration
3. Polymer filtration stainless steel pleated filter cartridge has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt
4. Polymer filtration stainless steel pleated filter cartridge has a very high filter efficiency because of different fiber layers density gradients of zwen sintered fiber felt
5. Stainless steel fiber will not shed in the filtration process
6. High porosity
7. High filter rating accuracy
8. High temperature resistance
9. High corrosion resistance
10. Pressure rise rate is slow in the filtration process
11. Pressure loss is low in the filtration process
12. High flow rate at low differential pressure
13. Washable and Cleanable
15. Long service life
Polyester filtration, polymer filtration, membrane filtration, chemical fiber industry
XINXIANG ZWEN FILTER CO.,LTD produces pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated wire mesh filter cartridge, ss pleated filter cartridge, stainless steel pleated filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated wire mesh filter element, ss pleated filter element, stainless steel pleated filter element), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter plate (sintered fiber felt, sintered wire mesh, sintered powder filter plate), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), and sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
