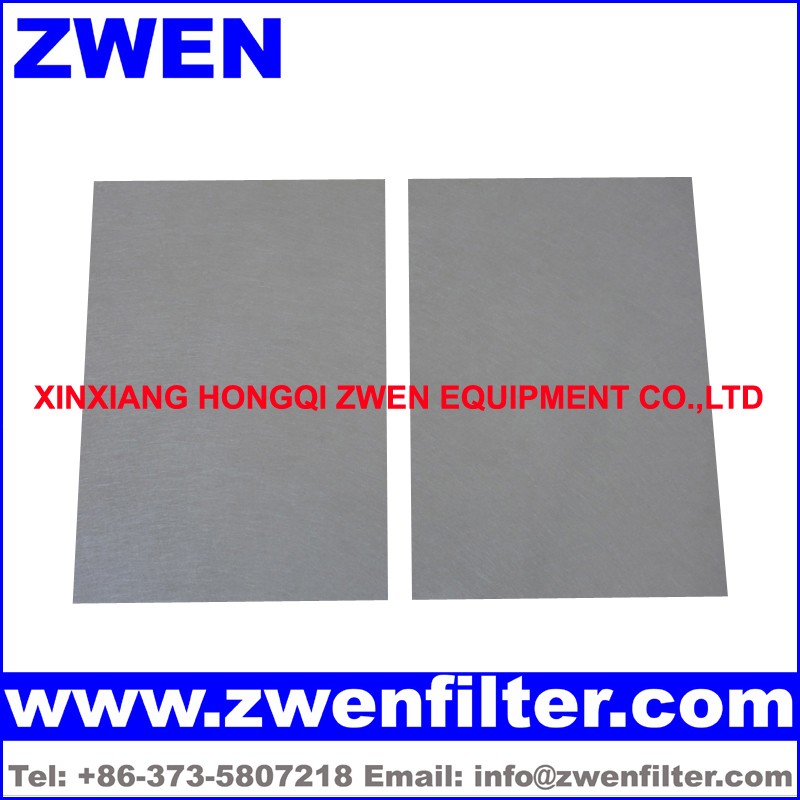

Sintered Fiber Felt Filter Media Technical Parameter
Raw Material: SS 316L
Filter Rating Range: 1 μm ~ 100 μm
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Length: ≤ 1500 mm
Width: ≤ 1200 mm
Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm,1200 mm*1000 mm
Thickness Range: 0.2 mm ~ 10 mm
Number of Layers:
1. One layer (Sintered Fiber Felt Filter Media)
2. Two layers (One Side Protective Wire Mesh/Sintered Fiber Felt Filter Media)
3. Three layers (One Side Protective Wire Mesh/Sintered Fiber Felt Filter Media/One Side Protective Wire Mesh)
Sintered Fiber Felt Filter Media Feature
1. Sintered fiber felt filter media is made from different diameters stainless steel fibers
2. Sintered fiber felt filter media is sintered in a high temperature vacuum furnace
3. Sintered fiber felt filter media is a good filter media for depth filtration
4. Sintered fiber felt filter media has high dirt holding capacity because of three dimensional fiber structures
5. Sintered fiber felt filter media has a very high filter efficiency because of different fiber layers density gradients
6. High porosity
7. High temperature resistance
8. High corrosion resistance
9. High flow rate with low pressure drop
10. Washable and Cleanable
12. Long service life
13. Easy to be pleated
14. Easy to be welded, fabricated
15. Easy to be cutted into different shapes, such as circular, sheet
Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces sintered fiber felt filter media, sintered metal fiber felt, 316L sintered fiber felt, ss sintered fiber felt, and stainless steel sintered fiber felt.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
