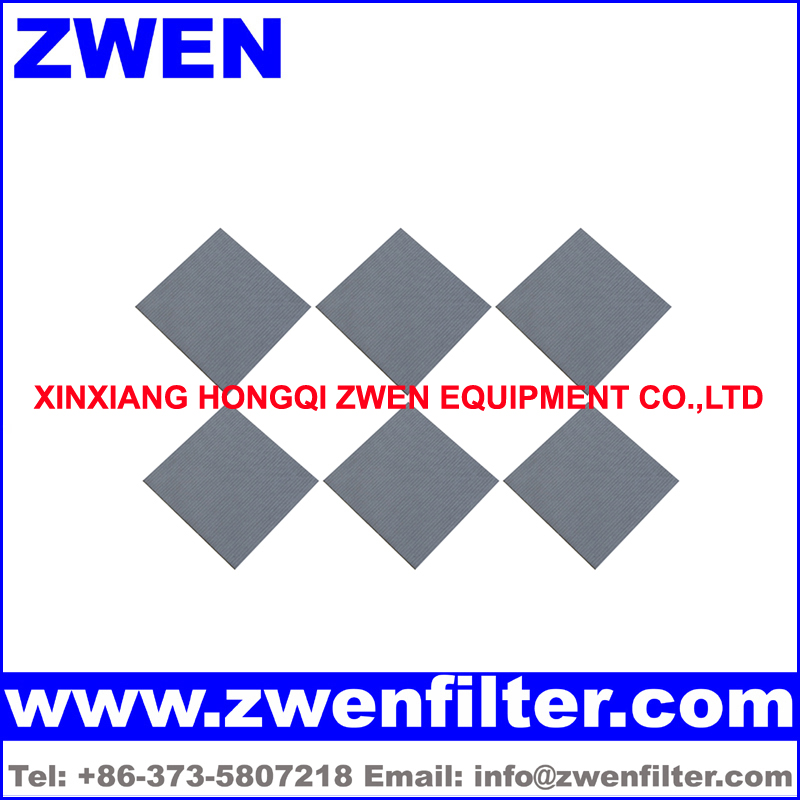

Backwash Sintered Mesh Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 um ~ 2000 um

Filter Efficiency: > 99.99 %

Number of Layers: 2 Layers ~ 20 Layers

Operation Temperature: ≤ 816 ℃

Length: ≤ 1200 mm

Width: ≤ 1000 mm

Regular Size (Length*Width): 500 mm*500 mm,1000 mm*500 mm,1000 mm*1000 mm,1200 mm*1000 mm

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Backwash Sintered Mesh Feature

1. Backwash sintered mesh is made from multilayer wire mesh

2. Backwash sintered mesh is sintered in a high temperature vacuum furnace

3. Backwash sintered mesh is surface filtration

4. Backwash sintered mesh is good for backwash because the pore passage of wire mesh aperture is very smooth

5. Backwash sintered mesh has uniform pore size distribution

6. High compression strength

7. High mechanical strength

8. High rigidity

9. High abrasion resistance

10. High durability against most liquids, gases and aggressive steam

11. High temperature resistance

12. High filter rating accuracy

13. High filter efficiency

14. High corrosion resistance

15. Washable and Cleanable

16. Reusable

17. Long service life

18. Easy to be welded, fabricated

19. Easy to be cutted into different shapes, such as circular, sheet

20. Easy to be made into different style, such as tube style, conical style

Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry

About Us

XINXIANG ZWEN FILTER CO.,LTD produces pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated wire mesh filter cartridge, ss pleated filter cartridge, stainless steel pleated filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated wire mesh filter element, ss pleated filter element, stainless steel pleated filter element), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter plate (sintered fiber felt, sintered wire mesh, sintered powder filter plate), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), and sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
