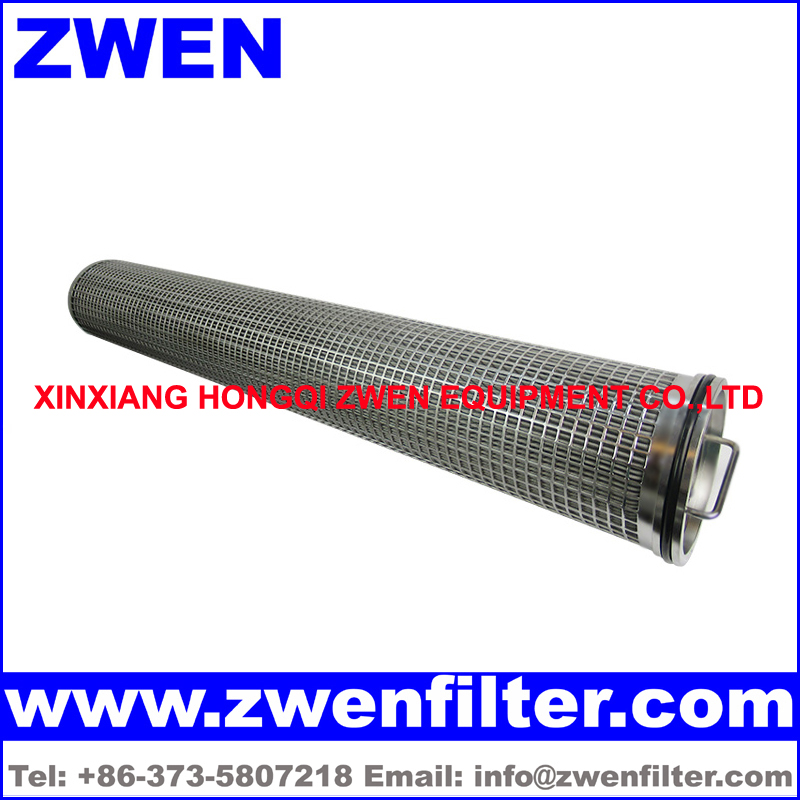

Pleated Metal Filter Element

Pleated Metal Filter Element

1



Pleated Metal Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Fiber Felt

Filter Rating Range: 1 Micron ~ 100 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 110 mm,

                             150 mm, 300 mm, 400 mm or others

Length: 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


Pleated Metal Filter Element Feature

1. Pleated metal filter element has large filter area

2. Pleated metal filter element has high dirt holding capacity

3. Pleated metal filter element has high porosity

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Washable and Cleanable

9. Long service life


Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces sintered fiber felt, sintered mesh, pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated ss filter cartridge, pleated stainless steel filter cartridge, pleated wire mesh filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated ss filter element, pleated stainless steel filter element, pleated wire mesh filter element), sintered metal filter candle (sintered mesh filter candle, sintered powder filter candle), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter plate (sintered mesh filter plate, sintered powder filter plate), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), and sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).
