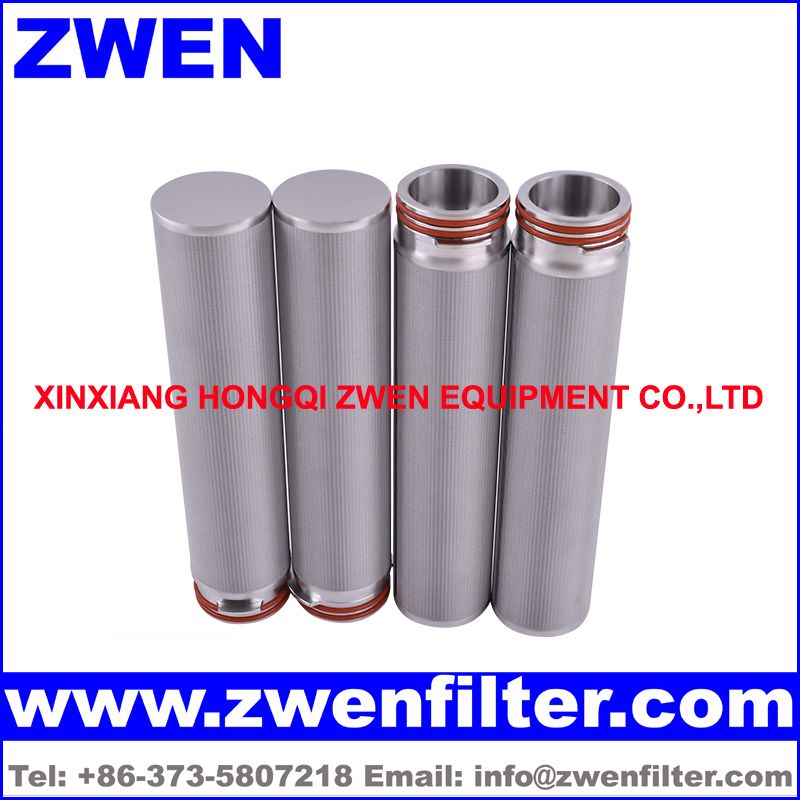

Sintered Mesh Filter Element


Sintered Mesh Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Media: ZWEN Sintered Mesh

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,

                              100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization




Sintered Mesh Filter Element Feature

1. Sintered mesh filter element is surface filtration

2. Sintered mesh filter element is good for backwash because the pore passage of zwen sintered mesh aperture is very smooth

3. Sintered mesh filter element has uniform pore size distribution

4. High compression strength

5. High mechanical strength

6. High rigidity

7. High abrasion resistance

8. High durability against most liquids, gases and aggressive steam

9. High temperature resistance

10. High filter rating accuracy

11. High filter efficiency

12. High corrosion resistance

13. Washable and Cleanable

14. Reusable

15. Long service life


Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry


About Us

XINXIANG ZWEN FILTER CO.,LTD produces sintered fiber felt, sintered mesh, pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated ss filter cartridge, pleated stainless steel filter cartridge, pleated wire mesh filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated ss filter element, pleated stainless steel filter element, pleated wire mesh filter element), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter plate (sintered mesh filter plate, sintered powder filter disc), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), andsintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
