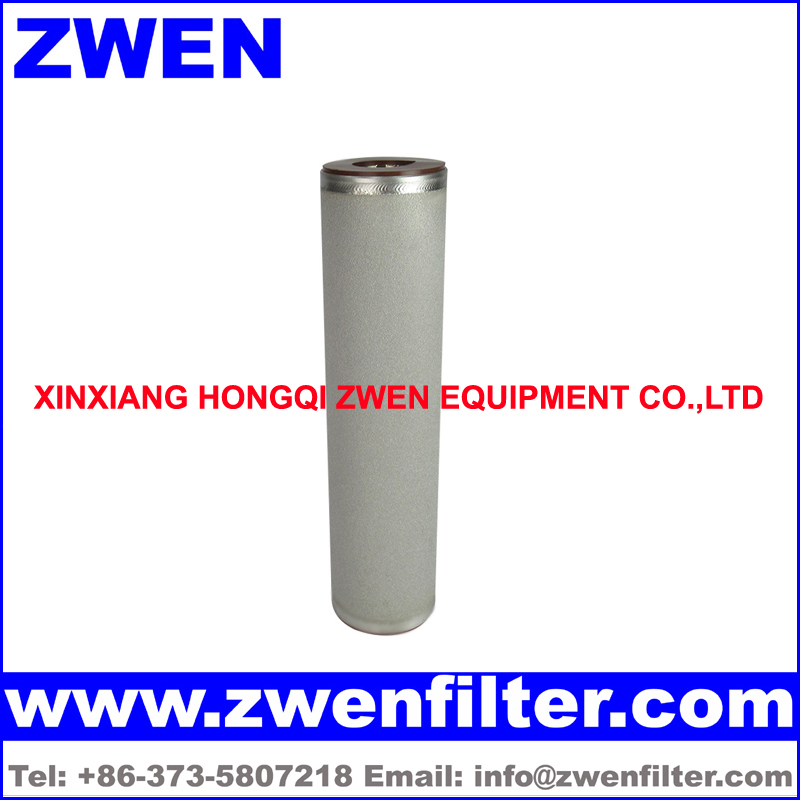

DOE Sintered Porous Filter

Source:http://www.zwenfilter.com/news/393.html    Time:2019-12-28    Hits:4

1

DOE Sintered Porous Filter Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 Micron ~ 2000 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,

                              100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor: DOE




DOE Sintered Porous Filter Feature

1. DOE sintered porous filter is made from stainless steel powder particle or titanium powder particle

2. DOE sintered porous filter is sintered in a high temperature vacuum furnace

3. DOE sintered porous filter is depth filtration

4. DOE sintered porous filter is backwash

5. High porosity

6. High mechanical strength

7. High filter efficiency

8. High dirt holding capacity

9. High flow rate at low differential pressure

10. High temperature resistance

11. High corrosion resistance

12. Washable and Cleanable

13. Reusable

14. Long service life


Application

1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)

2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)

3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)

4. Catalysts powders recovery

5. Precoat support filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)


About Us

XINXIANG ZWEN FILTER CO.,LTD produces DOE sintered metal filter, DOE sintered porous filter, DOE sintered powder filter, DOE sintered ss filter, DOE sintered stainless steel filter, DOE sintered ti filter, DOE sintered titanium filter, DOE sintered wire cloth filter, and DOE sintered wire mesh filter.


XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.


XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.


XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.


XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
