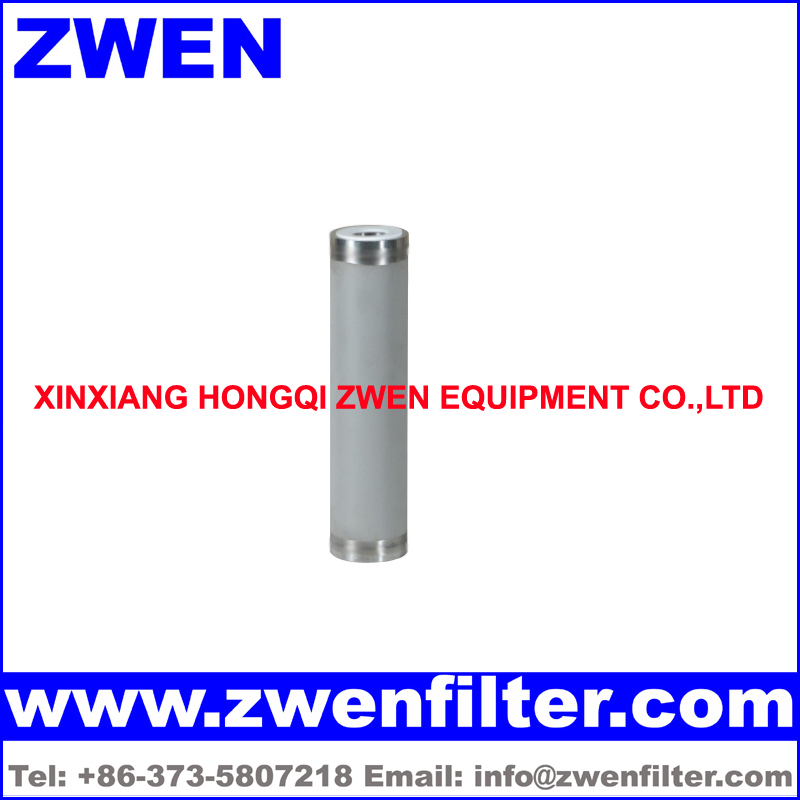

DOE Sintered Porous Filter Cartridge Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating Range: 0.5 Micron ~ 2000 Microns
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 816 ℃
Outside Diameter: 10 mm, 15 mm, 25 mm, 30 mm, 50 mm, 60 mm, 63.5 mm, 65 mm,
100 mm, 150 mm, 250 mm, 380 mm, 500 mm or others
Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Gasket: PTFE, Viton, Silicone, Buna-n, EPDM
DOE Sintered Porous Filter Cartridge Feature
1. DOE sintered porous filter cartridge is made from stainless steel powder particle or titanium powder particle
2. DOE sintered porous filter cartridge is sintered in a high temperature vacuum furnace
3. DOE sintered porous filter cartridge is depth filtration
4. DOE sintered porous filter cartridge is backwash
5. High porosity
6. High mechanical strength
7. High filter efficiency
8. High dirt holding capacity
9. High flow rate at low differential pressure
10. High temperature resistance
11. High corrosion resistance
12. Washable and Cleanable
14. Long service life
1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)
4. Catalysts powders recovery
5. Precoat support filtration
ZWEN Quality Guarantee
1. We can provide raw material test report
2. We can provide filter efficiency test report
3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces DOE sintered porous filter cartridge, sintered porous filter disc, sintered porous filter disk, DOE sintered porous filter element, sintered porous filter pipe, sintered porous filter plate, DOE sintered porous filter rod, sintered porous filter sheet, and sintered porous filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
