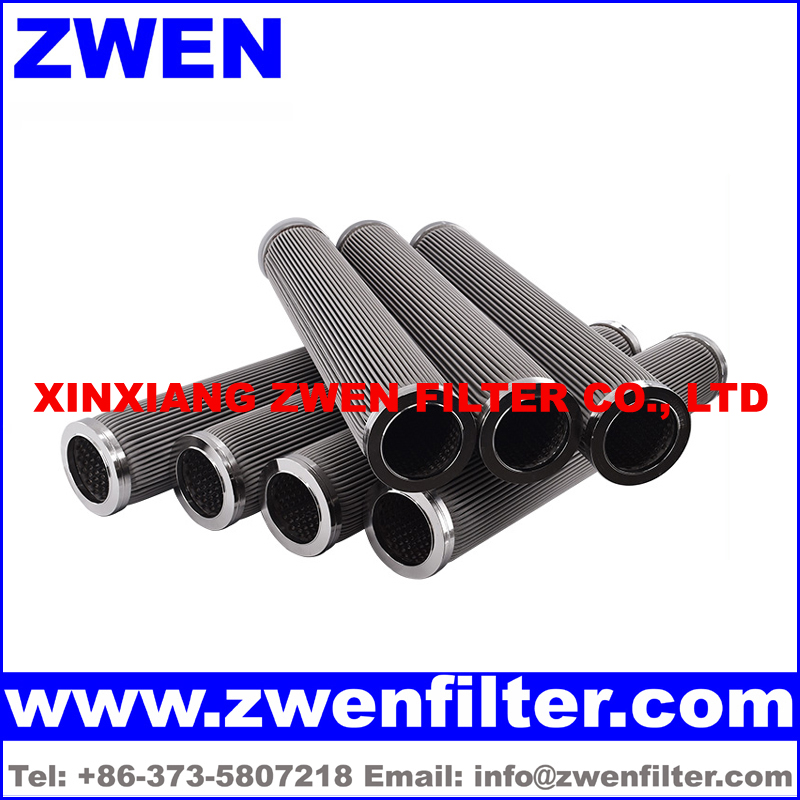

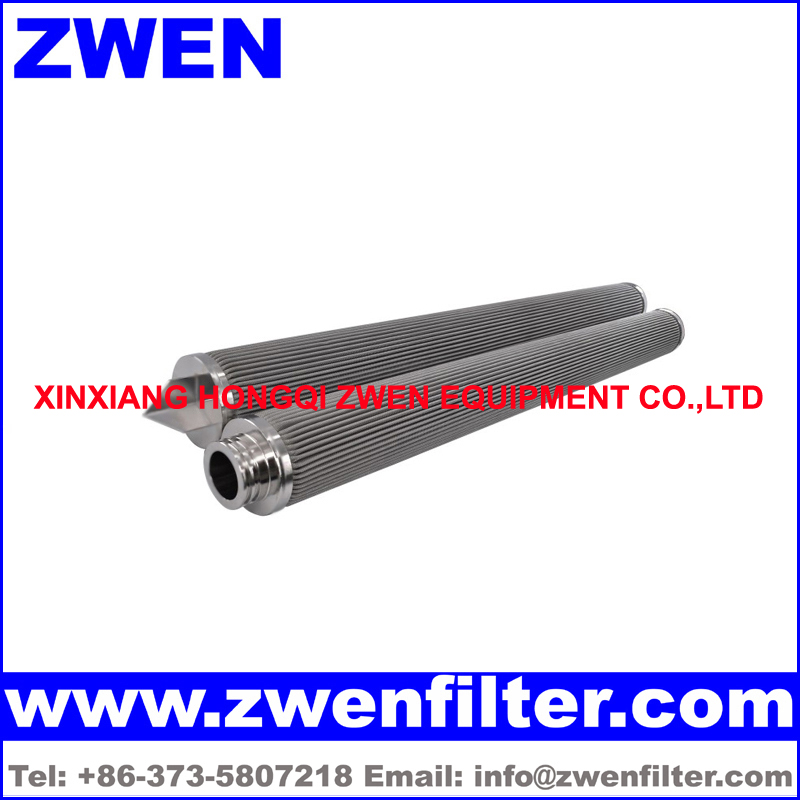

SS 316L Pleated Wire Cloth Filter Cartridge

Source:https://www.zwenfilter.com/news/1738.html    Time:2023-04-24    Hits:94

ZWEN------Backwash_Sintered_Filter_Leader



SS 316L Pleated Wire Cloth Filter Cartridge Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 Micron ~ 850 Microns

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Outside Diameter: 30 mm, 35 mm, 40 mm, 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm,

                             110 mm, 130 mm, 150 mm, 200 mm, 300 mm, 400 mm, 500 mm or others

Length: 5'' (127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector/Fitting/Adaptor:

1. DOE

2. Code 2 (226+Flat End)

3. Code 3 (222+Flat End)

4. Code 7 (226+Fin End)

5. Code 8 (222+Fin End)

6. Thread (NPT,BSP,G,M,R)

7. Flange

8. Special customization


SS 316L Pleated Wire Cloth Filter Cartridge Feature

1. SS 316L pleated wire cloth filter cartridge has large filter area

2. SS 316L pleated wire cloth filter cartridge has high flow rate

3. SS 316L pleated wire cloth filter cartridge is good for backwash

4. High filter efficiency

5. High mechanical strength

6. High temperature resistance

7. High corrosion resistance

8. Long service life



Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
