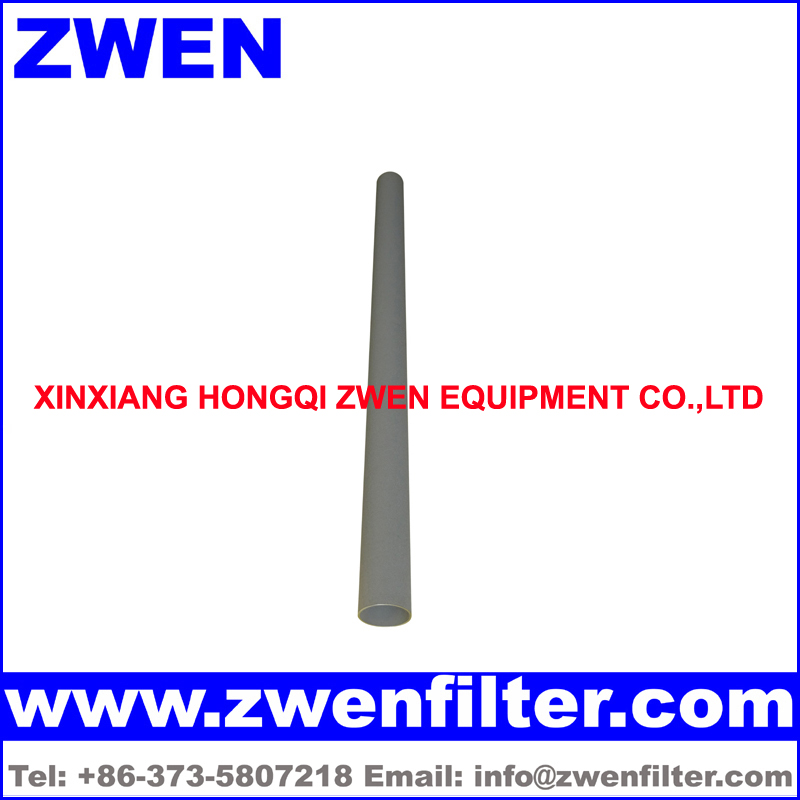

Ti Filter Tube Technical Data
Raw Material: Ti
Filter Rating Range: 0.22 μm ~ 100 μm
Filter Efficiency: > 99.99 %
Operation Temperature: ≤ 300 ℃
Outside Diameter: 12 mm, 25 mm, 30 mm, 50 mm, 60 mm, 65 mm, 70 mm, 80 mm, 90 mm, 100 mm
Length: 5''(127 mm), 10'' (254 mm), 20'' (508 mm), 30'' (762 mm), 40'' (1016 mm) or others
Ti Filter Tube Feature
1. Ti filter tube is made from ti powder particle
2. Ti filter tube is sintered in a high temperature vacuum furnace
3. Ti filter tube is depth filtration
4. Ti filter tube is suitable for food industry and medicine industry (GMP) because ti is an in-noxious metal and an inert metal
5. Ti filter tube is backwash
6. High corrosion resistance
7. High porosity
8. High mechanical strength
9. High filter efficiency
10. High dirt holding capacity
11. High flow rate at low differential pressure
12. High temperature resistance
13. Washable and Cleanable
15. Long service life
1. Steam filtration (aseptic package, breweries, chemicals, dairies, electronics, food and beverage, pharmaceuticals, plastic)
2. High temperature gases filtration (highly aggressive gases, nitrogen, carbon dioxide, compressed air, tank ventilation)
3. High temperature liquid filtration (chemicals, cosmetics, paints, salt and seawater, syrups, coolants, food and beverage, pharmaceuticals, solvents, water)
4. Catalysts powders recovery
5. Precoat support filtration
ZWEN Quality Guarantee
1. we can provide raw material test report
2. we can provide filter efficiency test report
3. we will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
XINXIANG ZWEN FILTER CO.,LTD produces ti filter candle, ti filter cartridge, ti filter disc, ti filter disk, ti filter element, ti filter pipe, ti filter plate, ti filter rod, ti filter sheet, and ti filter tube.
XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.
XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.
XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.
XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
