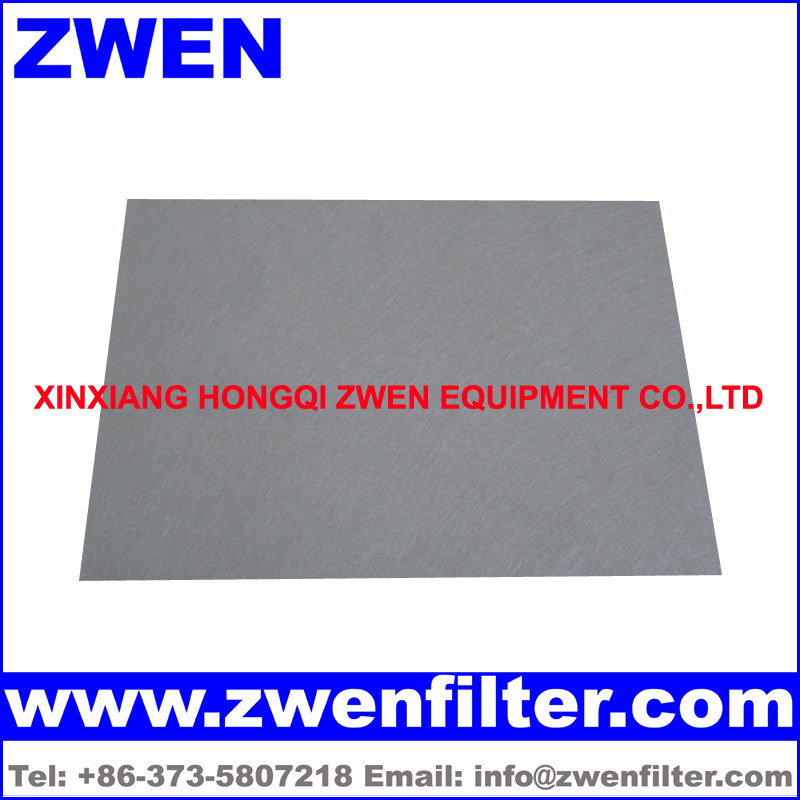

High Temperature Resistance Sintered Fiber Felt Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 μm ~ 300 μm

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Length: ≤ 1200 mm

Width: ≤ 1000 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm or others

Special Size (Length*Width): 1500 mm*900 mm

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (High Temperature Resistance Sintered Fiber Felt)

2. Two layers (One Side Protective Wire Mesh/High Temperature Resistance Sintered Fiber Felt)

3. Three layers (One Side Protective Wire Mesh/High Temperature Resistance Sintered Fiber Felt/One Side Protective Wire Mesh)

High Temperature Resistance Sintered Fiber Felt Feature

1. High temperature resistance sintered fiber felt is made from different diameters stainless steel fibers

2. High temperature resistance sintered fiber felt is sintered in a high temperature vacuum furnace

3. High temperature resistance sintered fiber felt is a good filter media for depth filtration

4. High temperature resistance sintered fiber felt has high dirt holding capacity because of three dimensional fiber structures

5. High temperature resistance sintered fiber felt has a very high filter efficiency because of different fiber layers density gradients

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

16. Easy to be pleated

17. Easy to be welded, fabricated

18. Easy to be cutted into different shapes, such as circular, sheet

Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry

About Us

XINXIANG ZWEN FILTER CO.,LTD produces pleated metal filter cartridge (pleated sintered fiber felt filter cartridge, pleated wire mesh filter cartridge, ss pleated filter cartridge, stainless steel pleated filter cartridge), pleated metal filter element (pleated sintered fiber felt filter element, pleated wire mesh filter element, ss pleated filter element, stainless steel pleated filter element), sintered metal filter cartridge (sintered mesh filter cartridge, sintered powder filter cartridge), sintered metal filter element (sintered mesh filter element, sintered powder filter element), sintered metal filter disc (sintered mesh filter disc, sintered powder filter disc), sintered metal filter plate (sintered fiber felt, sintered wire mesh, sintered powder filter plate), sintered metal filter sheet (sintered mesh filter sheet, sintered powder filter sheet), and sintered metal filter tube (sintered mesh filter tube, sintered powder filter tube).

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: Parker, GKN, SIEMENS, MAHLE.
