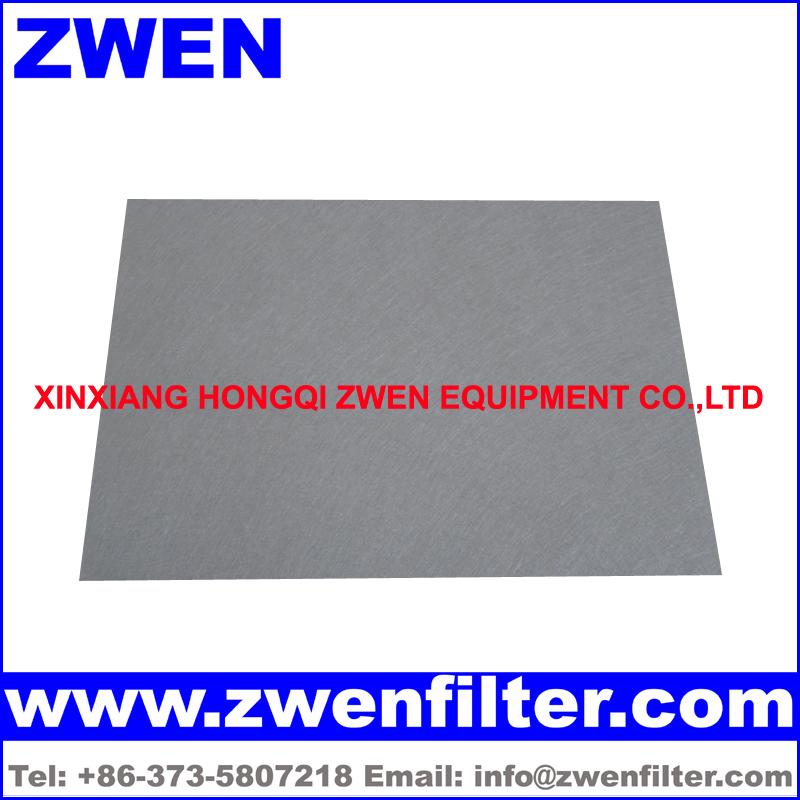

Metal Fiber Mat

Source:https://www.zwenfilter.com/news/641.html    Time:2020-01-04    Hits:28

1

Metal Fiber Mat Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 μm ~ 100 μm

Filter Efficiency: > 99.99 %

Operation Temperature:  816

Length:  1500 mm

Width:  1200 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm,1200 mm*1000 mm

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (Metal Fiber Mat)

2. Two layers (One Side Protective Wire Mesh/Metal Fiber Mat)

3. Three layers (One Side Protective Wire Mesh/Metal Fiber Mat/One Side Protective Wire Mesh)




Metal Fiber Mat Feature

1. Metal fiber mat is made from different diameters stainless steel fibers

2. Metal fiber mat is sintered in a high temperature vacuum furnace

3. Metal fiber mat is a good filter media for depth filtration

4. Metal fiber mat has high dirt holding capacity because of three dimensional fiber structures

5. Metal fiber mat has a very high filter efficiency because of different fiber layers density gradients

6. High porosity

7. High temperature resistance

8. High corrosion resistance

9. High flow rate with low pressure drop

10. Washable and Cleanable

11. Reusable

12. Long service life

13. Easy to be pleated

14. Easy to be welded, fabricated

15. Easy to be cutted into different shapes, such as circular, sheet



Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration


ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)
