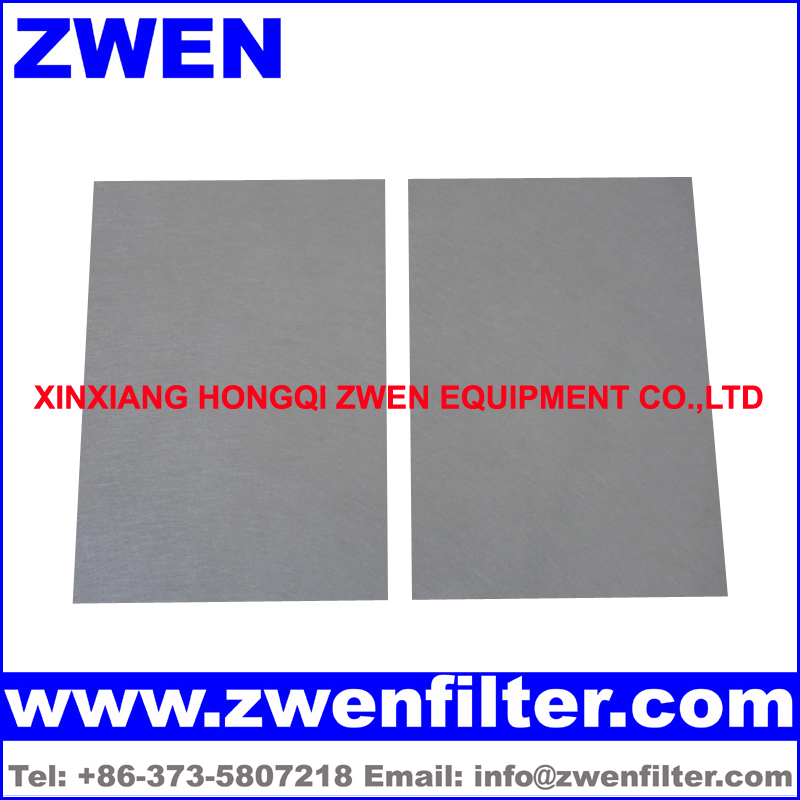

Non-Woven Sintered Fiber Felt Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 μm ~ 100 μm

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Length: ≤ 1200 mm

Width: ≤ 1000 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (Non-Woven Sintered Fiber Felt)

2. Two layers (One Side Protective Wire Mesh/Non-Woven Sintered Fiber Felt)

3. Three layers (One Side Protective Wire Mesh/Non-Woven Sintered Fiber Felt/One Side Protective Wire Mesh)

Non-Woven Sintered Fiber Felt Feature

1. Non-woven sintered fiber felt is made from different diameters stainless steel fibers

2. Non-woven sintered fiber felt is sintered in a high temperature vacuum furnace

3. Non-woven sintered fiber felt is a good filter media for depth filtration

4. Non-woven sintered fiber felt has high dirt holding capacity because of three dimensional fiber structures

5. Non-woven sintered fiber felt has a very high filter efficiency because of different fiber layers density gradients

6. High porosity

7. High temperature resistance

8. High corrosion resistance

9. High flow rate with low pressure drop

10. Washable and Cleanable

11. Reusable

12. Long service life

13. Easy to be pleated

14. Easy to be welded, fabricated

15. Easy to be cutted into different shapes, such as circular, sheet

Application

Polymers filtration, high temperature liquid filtration, high viscosity liquid filtration, high temperature gases filtration, steam filtration, catalysts filtration, solvents filtration, fuel filtration, lubricant oil filtration, ink filtration, water filtration, beverages filtration, resin filtration, detergent filtration

ZWEN Quality Guarantee

1. We can provide raw material test report

2. We can provide filter efficiency test report

3. We will pay 2 times price for clients if SGS test report shows bad quality (we only accept SGS test report)

About Us

XINXIANG ZWEN FILTER CO.,LTD produces metal fiber mat, non-woven sintered fiber felt, sintered fiber filament media, sintered fiber filter media, and sintered metal fiber media.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
