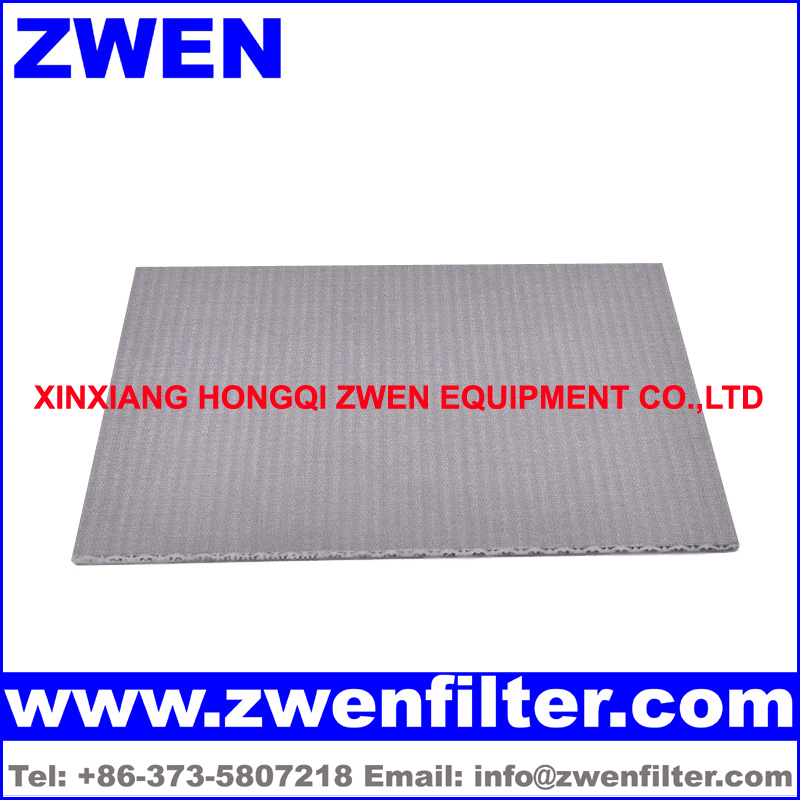

Sintered Mesh Laminate Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating Range: 0.5 um ~ 2000 um

Filter Efficiency: > 99.99 %

Number of Layers: 2 Layers ~ 20 Layers

Operation Temperature: ≤ 816 ℃

Length: ≤ 1200 mm

Width: ≤ 1000 mm

Regular Size (Length*Width): 500 mm*500 mm,1000 mm*500 mm,1000 mm*1000 mm,1200 mm*1000 mm

Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others

Sintered Mesh Laminate Feature

1. Sintered mesh laminate is made from multilayer wire mesh

2. Sintered mesh laminate is sintered in a high temperature vacuum furnace

3. Sintered mesh laminate is surface filtration

4. Sintered mesh laminate is good for backwash because the pore passage of wire mesh aperture is very smooth

5. Sintered mesh laminate has uniform pore size distribution

6. High compression strength

7. High mechanical strength

8. High rigidity

9. High abrasion resistance

10. High durability against most liquids, gases and aggressive steam

11. High temperature resistance

12. High filter rating accuracy

13. High filter efficiency

14. High corrosion resistance

15. Washable and Cleanable

16. Reusable

17. Long service life

18. Easy to be welded, fabricated

19. Easy to be cutted into different shapes, such as circular, sheet

20. Easy to be made into different style, such as tube style, conical style

Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry
