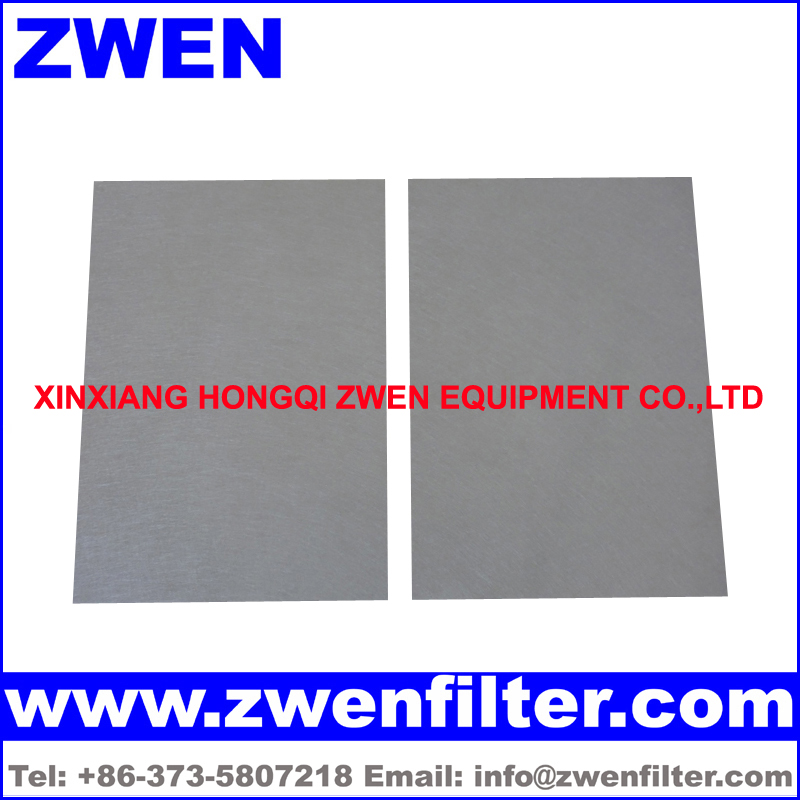

316L Sintered Fiber Filament Media Technical Parameter

Raw Material: SS 316L

Filter Rating Range: 1 Micron ~ 300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Length: ≤ 1500 mm

Width: ≤ 1200 mm

Regular Size (Length*Width): 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000 mm,1200 mm*1000 mm

Thickness Range: 0.2 mm ~ 10 mm

Number of Layers:

1. One layer (316L Sintered Fiber Filament Media)

2. Two layers (One Side Protective Wire Mesh/316L Sintered Fiber Filament Media)

3. Three layers (One Side Protective Wire Mesh/316L Sintered Fiber Filament Media/One Side Protective Wire Mesh)

316L Sintered Fiber Filament Media Feature

1. 316l sintered fiber filament media is made from different diameters stainless steel fibers

2. 316l sintered fiber filament media is sintered in a high temperature vacuum furnace

3. 316l sintered fiber filament media is a good filter media for depth filtration

4. 316l sintered fiber filament media has high dirt holding capacity because of three dimensional fiber structures

5. 316l sintered fiber filament media has a very high filter efficiency because of different fiber layers density gradients

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in the filtration process

11. Pressure loss is low in the filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

16. Easy to be pleated

17. Easy to be welded, fabricated

18. Easy to be cutted into different shapes, such as circular, sheet

Application

Polyester filtration, polymer filtration, membrane filtration, oil filtration, steam filtration, gas filtration, powder filtration, liquid filtration, water filtration, beverages filtration, detergent filtration, solvents filtration, medicine filtration, pharmaceutical industry, petroleum industry, biological industry, chemical industry, chemical fiber industry, food industry

About Us

XINXIANG ZWEN FILTER CO.,LTD produces sintered fiber felt sheet, 316l sintered fiber felt, ss sintered fiber felt, stainless steel sintered fiber felt, sintered fiber filament media, sintered fiber filter media, and sintered metal fiber media.

XINXIANG ZWEN FILTER CO.,LTD has advanced sintering equipment, advanced welding equipment and a high level of skilled workers.

XINXIANG ZWEN FILTER CO.,LTD has passed ISO 9001:2008 quality management system and SGS audit test.

XINXIANG ZWEN FILTER CO.,LTD main markets are European market and North American market.

XINXIANG ZWEN FILTER CO.,LTD Key Clients: 3M, BOEING, GKN, MAHLE, Parker, SIEMENS.
